TREx RGB

TREx-RGB (Red, Green, Blue) is part of the Canada Foundation for Innovation, Transition Region Explorer (TREx) sensor web. The RGB sensors are highly sensitive, broadband, true color detectors that product 3-channel (RGB) ASI images. RGB operates at a nominal cadence of 3s but is capable of 3Hz burst-mode acquisition. Burst mode data is recorded regularly and can be found in the RGB data tree.

• 7 instruments

• Data tree location: https://data.phys.ucalgary.ca/sort_by_project/TREx/RGB/

• DOI: https://commons.datacite.org/doi.org/10.11575/4p8e-1k65

• Acknowledgements PDF: https://data.phys.ucalgary.ca/sort_by_project/TREx/RGB/acknowledgements.pdf

• Contact: Emma Spanswick

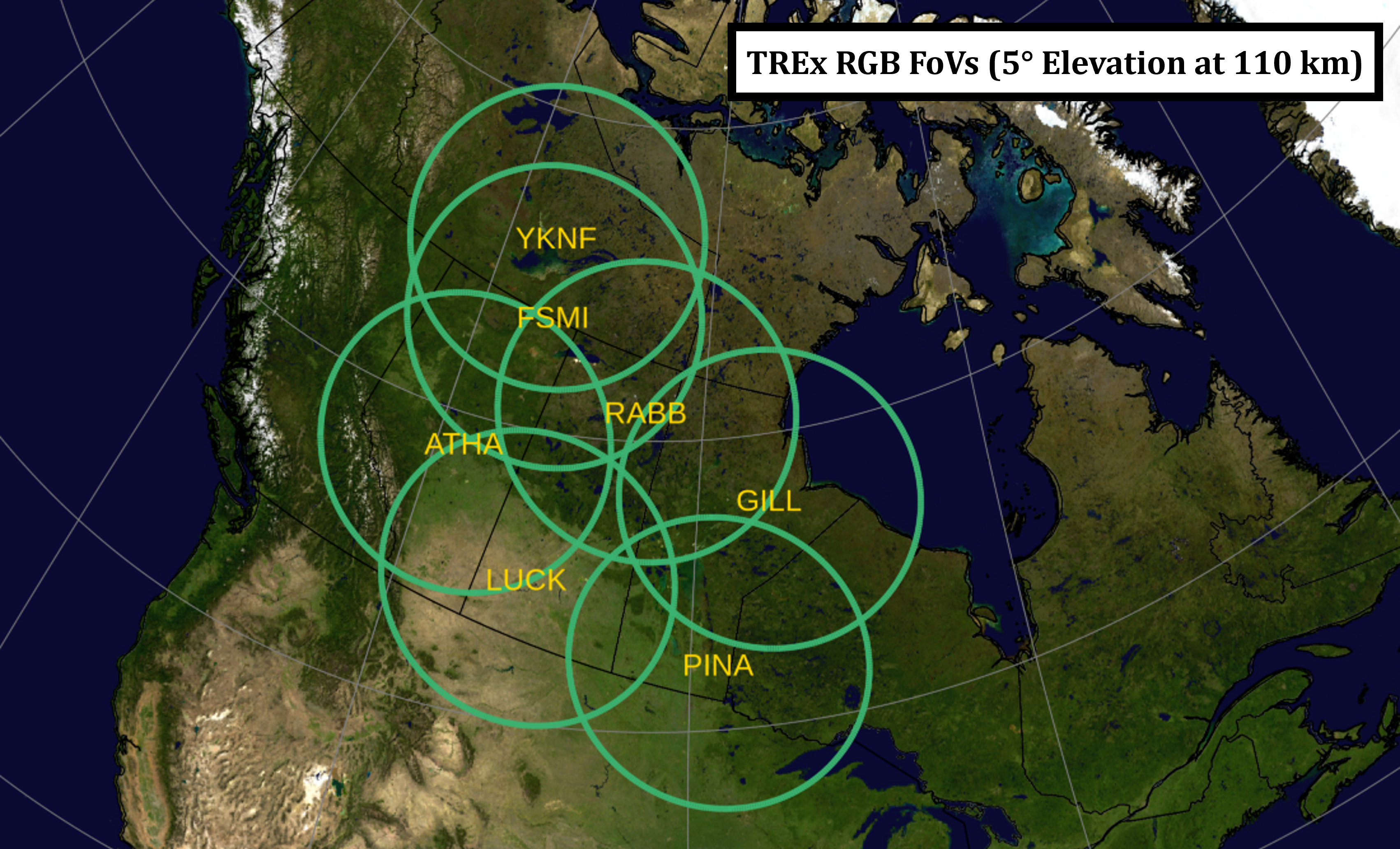

View hi-res 5 degree elevation angle version
View 10 degree elevation angle version

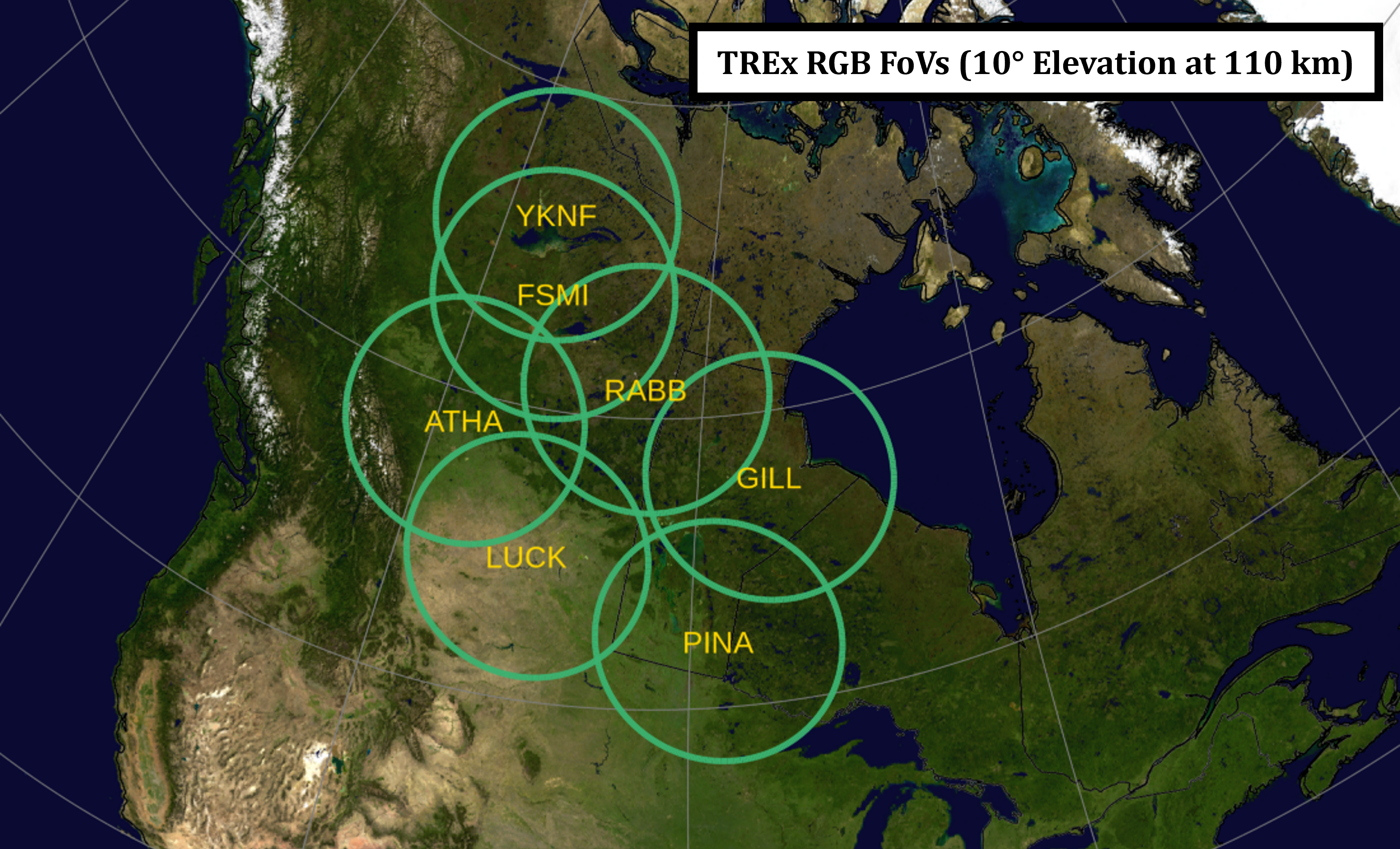

View hi-res 10 degree elevation angle version

Observatories

API Datasets

Common datasets:

• TREX_RGB_RAW_NOMINAL

• TREX_RGB_SKYMAP_IDLSAV

Dataset Detailed Descriptions

TREX_RGB_RAW_NOMINAL

The primary dataset used by the analysis support software, and the dataset that most users utilize.

TREX_RGB_GRID_MOSV001

Verified grid file dataset, version 001. Dataset generation details will be available shortly.

TREX_RGB5577_GRID_MOSV001

Verified grid file dataset for RGB to 557.7nm conversion. Dataset generation details will be available shortly.
